Spinaakkeripuomin kuulalaakeri puominvaunu renkaalla 2:1 säätö RCB 30mm kiskoon
Selden tuote no: 511-858-03
Ring car with eys for lift and downhoul
RCB spinnukisko vaunu Ø 30mm lenkillä
Sopii Selden RCB 30mm kiskoon

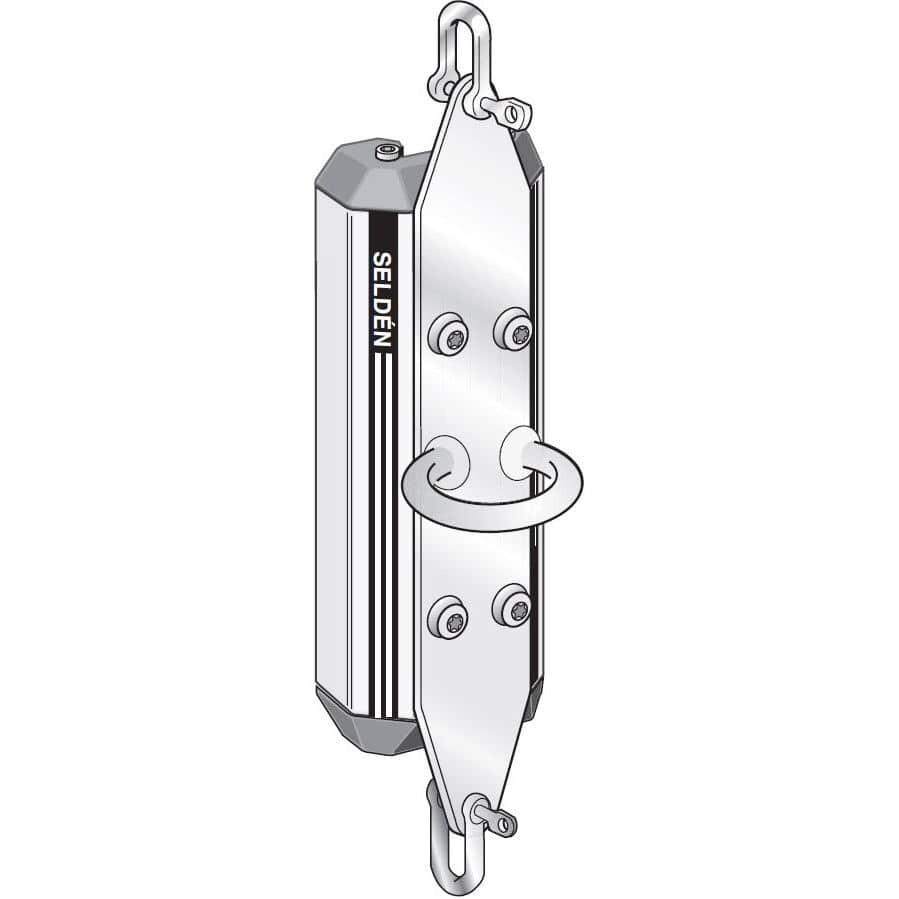

Spinnaker Pole Car, ø30 mm ring for end-for-end pole, 2:1 purchase
Spinnaker pole car running on our 30 mm RCB track. Sheaves above and below the ring make for a 2:1 heel lift adjustment for controlled trim under high load. NOTE: This car is not intended for vertical pole stowage, only for spinnaker trim. The body is made of extruded and clear anodized aluminium and comes with composite ends. The bracket and ring are stainless steel and the ball bearings are made of Torlon. The car is delivered on a short piece of track and as the ball bearings are not captive it is important to align the transport-track with the track on the mast, move the car over and fix the endstop.
Combine with a Seldén end-for-end pole fitting.
RCB stands for Round Circulating Ball bearings.
Track Type: RCB 30
Description: Ø30 ring
MaxRM: 120 kN
Purchase: 2
BR: 60.00 mm
| Paino | 1.144 kg (kilogramma) |
|---|---|
| Tyyppi | RCB30 |
| Tuotemerkki | Selden |
